XTTF Handheld Haze Meter DH-10 – Professional-Grade Haze & Transmittance Measurement Tool

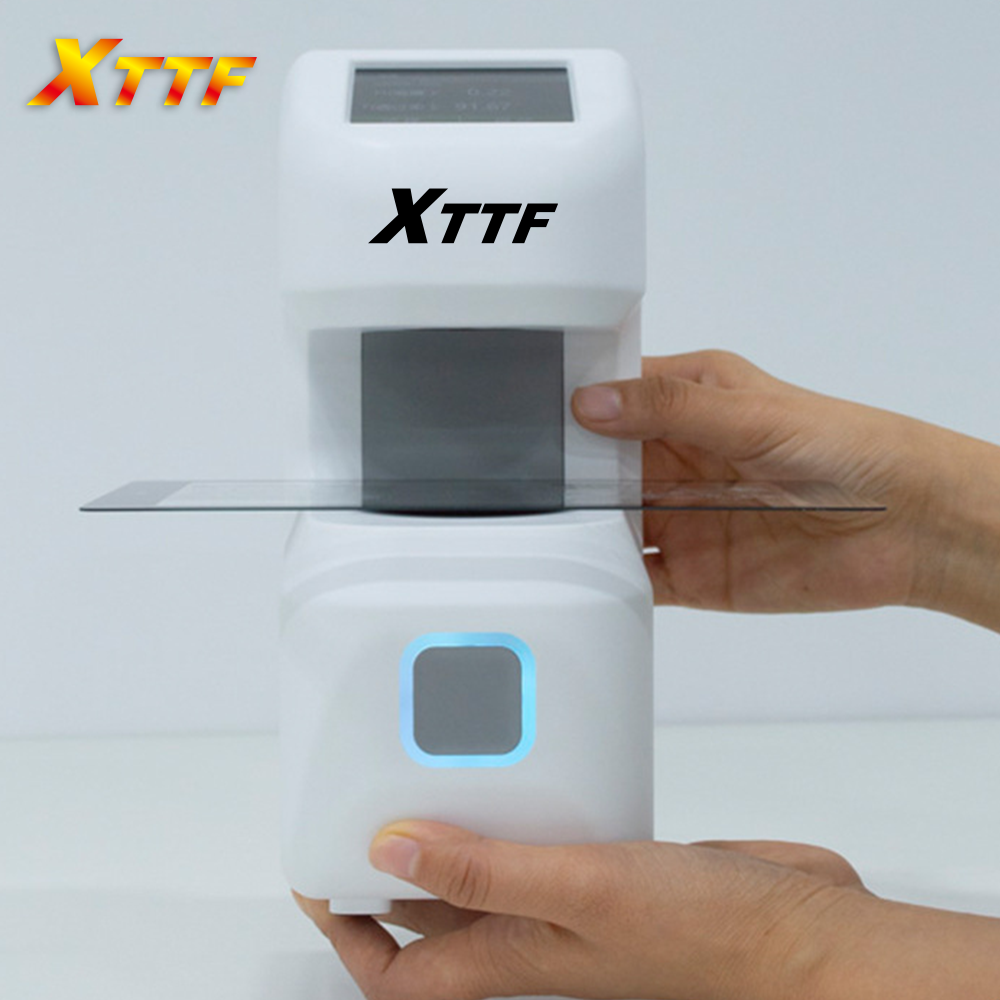

The XTTF Handheld Haze Meter DH-10 is an advanced, portable device that provides precise measurements of haze and visible light transmittance (VLT). Compact and lightweight, the DH-10 is designed to meet the demanding needs of industries such as film production, automotive PPF installation, and glass quality control.
XTTF Handheld Haze Meter DH-10 – Compact Precision for Film & Glass Measurement

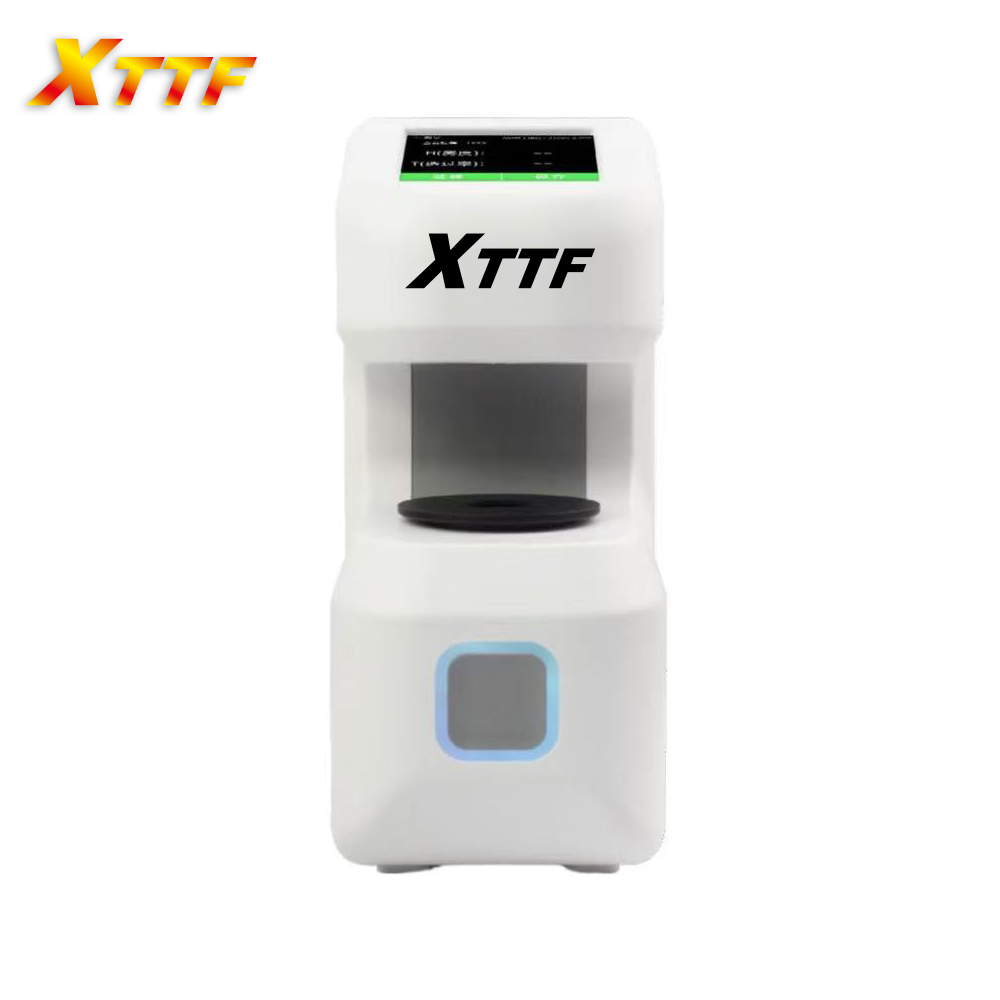

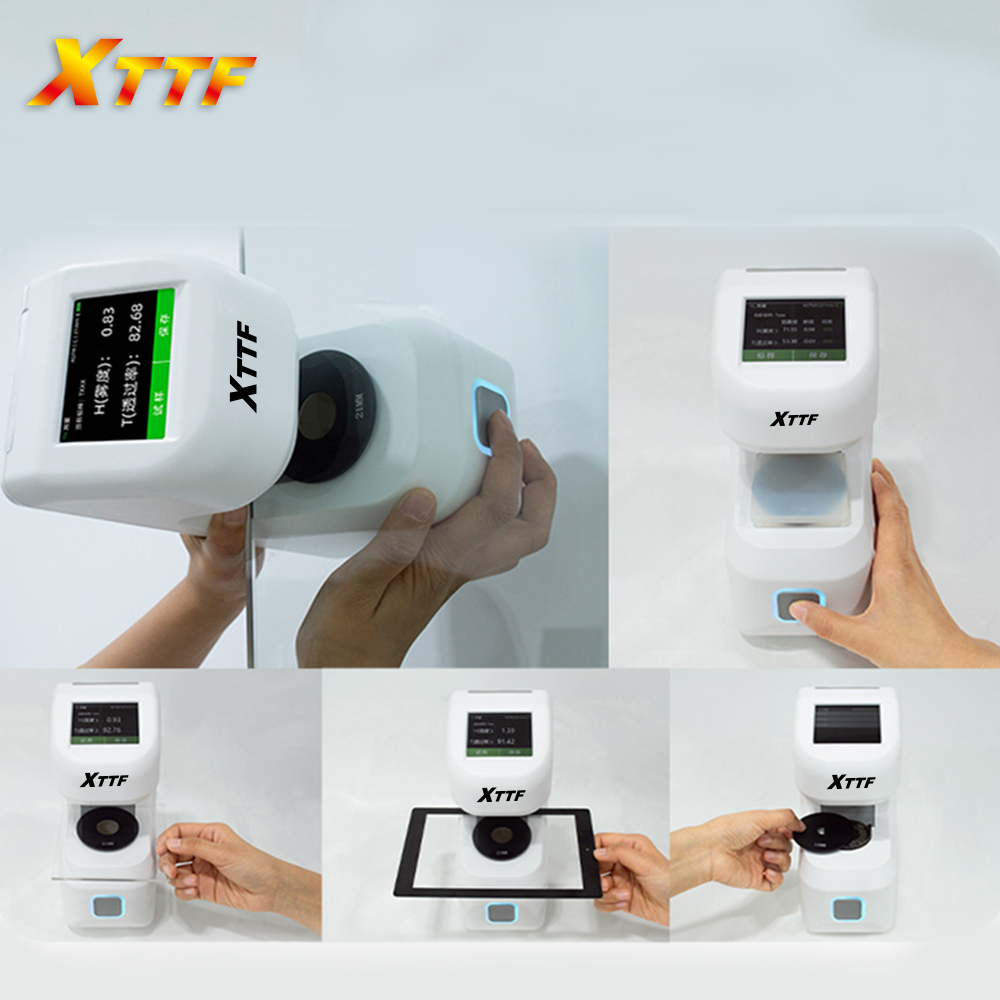

The XTTF Handheld Haze Meter DH-10 is engineered to deliver highly accurate haze and transmittance readings for professionals across various industries. Its compact and lightweight design makes it ideal for use both in-field and in-lab settings, ensuring consistent, reliable results for a wide range of applications, from film testing to automotive glass inspection.
High Precision Under Standardized Conditions
Compliant with international standards such as ASTM D1003/1044, ISO 13468, and JIS K 7105, the DH-10 is calibrated to ensure precise haze and transmittance readings under three common illuminants: CIE-A, CIE-C, and CIE-D65. This makes it versatile for testing different materials, including tinted windows, solar control films, and decorative glass. Whether you are testing thin films or thick glass, the DH-10 provides highly accurate and repeatable measurements, critical for quality assurance and research purposes.
Exceptional Measurement Accuracy
With a measurement range of 0-100% and 0.1% resolution, the DH-10 offers precise data for both haze (as per ASTM standards) and visible light transmittance (VLT). The high repeatability (0.1%) ensures consistent and trustworthy results, making it an essential tool for any quality control process in manufacturing or R&D.

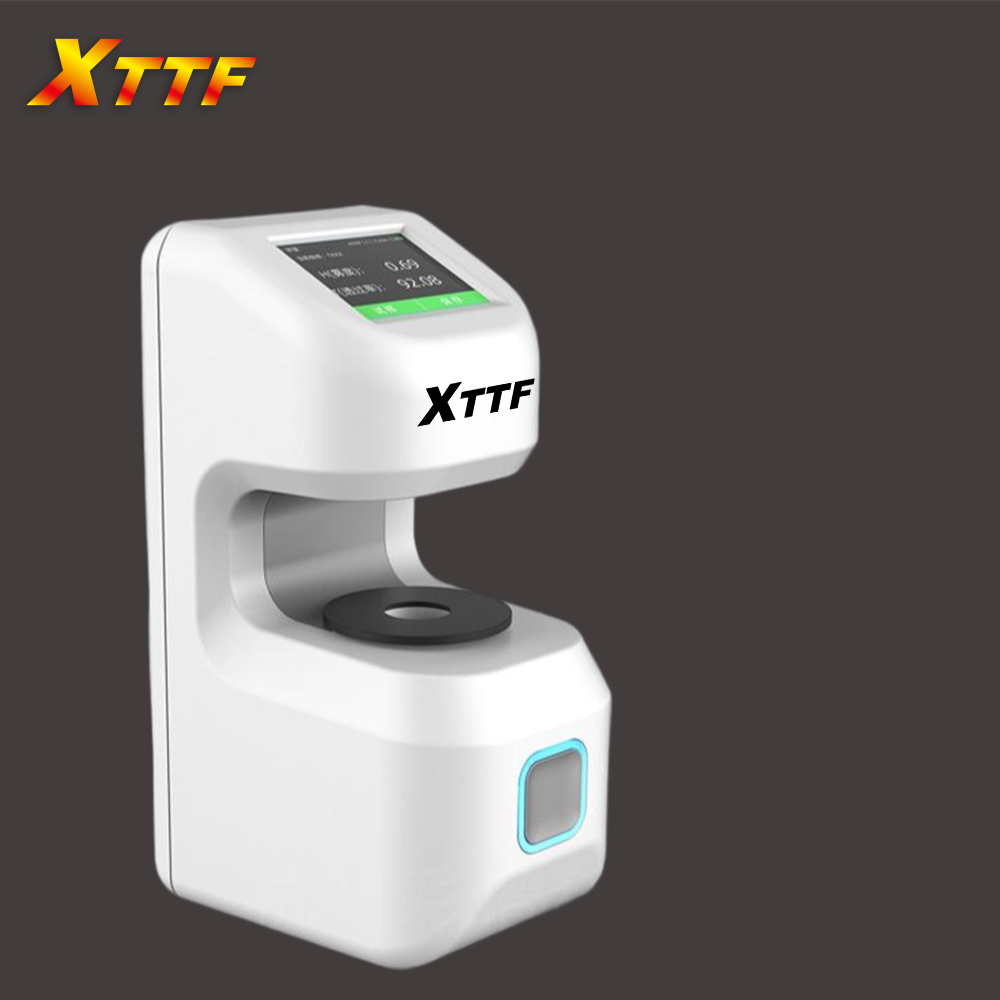

User-Friendly Interface with 2.8-Inch Touchscreen

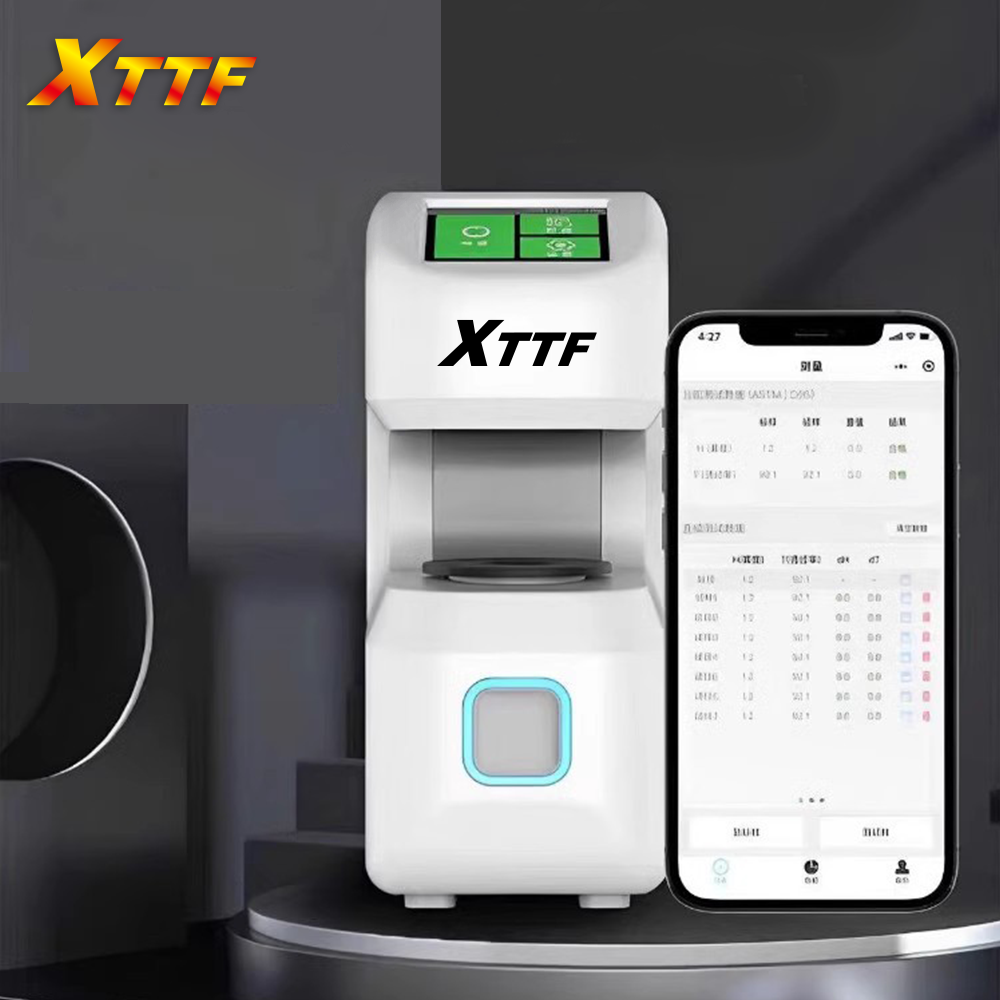

The device features an intuitive 2.8-inch touchscreen that simplifies operation with easy navigation, real-time data visualization, and touch-activated controls. The user-friendly interface enhances workflow efficiency by providing fast results with minimal training required.
| Model |
DH-10 |
| Light Source |
CIE-A,CIE-C,CIE-D65 |
| Follow The Standards |
ASTM D1003/D1044,ISO 13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08 |
| Measurement parameters |
Haze under ASTM standards，VLT |
| Spectral Response |
CIE Spectral Function Y/V(λ) |
| Optical Path Structure |
0/d |
| Measurement Aperture |
21mm |
| Range |
0-100% |
| Resolution |
0.1% |
| Repeatability |
0.1 |
| Sample Size |
Thickness≤40mm |
| Display |
2.8-Inch Touch Screen |
| Store Data |
Massive Storage |
| Interface |
USB interface |
| Power Supply |
DC 5V/2A |
| Operating Temperature |
5–40°C, relative humidity 80% or lower (at 35°C), no condensation |
| Storage Temperature |
-20℃~45℃, relative humidity 80% or lower (at 35℃), no condensation |
| Volume |
L×W×H：133mm×99mm×224mm |
| Weight |
1.13kg |
Widely Applicable Across Industries
Whether used in film production, automotive, or glass manufacturing, the DH-10 is versatile enough to meet the needs of a wide range of industries:
- Film Industry: Measure haze and transmittance in various films such as window tint, solar control films, and protective coatings.
- Automotive Industry: Assess visible light transmittance and haze in automotive window films, PPF applications, and more.
- Glass Manufacturers: Ensure quality by measuring haze and light transmittance for tempered and laminated glass products.
- Electronics: Evaluate screen clarity and transparency for devices, monitors, and display panels.
Superior Quality and Long-Term Reliability
Manufactured to the highest standards, the DH-10 provides unmatched durability and accuracy. With high-temperature resistance and long battery life, it’s built for repeated use in various environments. The rugged design makes it ideal for on-the-go testing in dynamic workspaces.
Super Factory Quality Assurance
As a trusted OEM/ODM supplier, XTTF offers complete quality control, ensuring every unit meets global standards. Each device is thoroughly tested to guarantee consistent performance in real-world conditions. Our super factory capabilities allow us to support large-scale orders, customized packaging, and private labeling for distributors and professional resellers.
Inquire Now for Pricing, Customization, and Bulk Orders
Interested in placing a bulk order or learning more about our product customization options? Contact us today for competitive pricing and detailed product information. Let XTTF support your business with the highest-quality haze and transmittance measurement tools.
